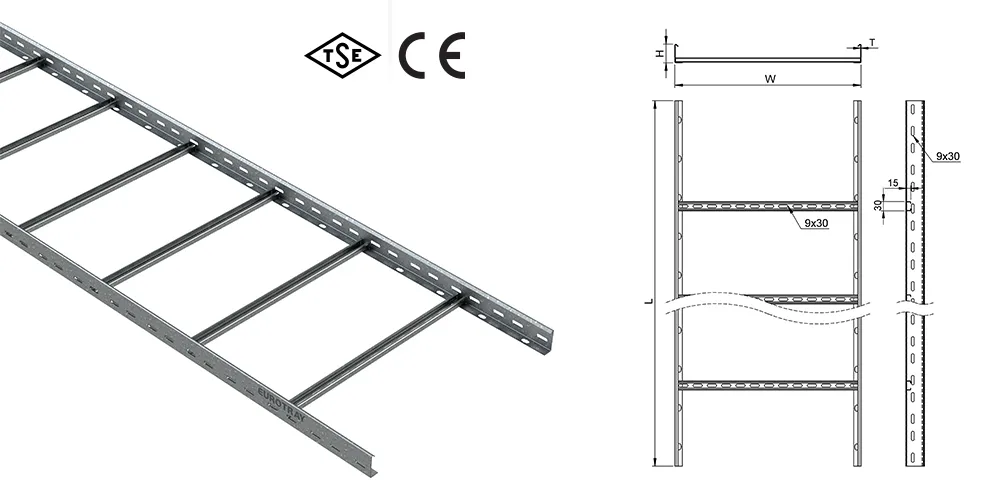

EL SERIES Cable Ladders
| Type | : Medium Heavy Duty Type |
| Property | : Design accepted in various industries |
| Code | : EL |
| Advantages | : Cost |
| Thickness | : 0,80 – 2,00 mm |
| Width | : 50-900 mm |
Coating Types
Technical Tables
H40
| # | Product Code | T (mm) | W (mm) | H (mm) | Unit Weight(kg/m) |
| 1 | EL-10040-150 | 1.5 | 100 | 40 | 2.119 |
| 2 | EL-10040-200 | 2.0 | 100 | 40 | 2.695 |
| 3 | EL-15040-150 | 1.5 | 150 | 40 | 2.272 |
| 4 | EL-15040-200 | 2.0 | 150 | 40 | 2.849 |
| 5 | EL-20040-150 | 1.5 | 200 | 40 | 2.426 |
| 6 | EL-20040-200 | 2.0 | 200 | 40 | 3.003 |
| 7 | EL-25040-150 | 1.5 | 250 | 40 | 2.579 |
| 8 | EL-25040-200 | 2.0 | 250 | 40 | 3.157 |
| 9 | EL-30040-150 | 1.5 | 300 | 40 | 2.732 |
| 10 | EL-30040-200 | 2.0 | 300 | 40 | 3.311 |
| 11 | EL-40040-150 | 1.5 | 400 | 40 | 3.038 |
| 12 | EL-40040-200 | 2.0 | 400 | 40 | 3.619 |
| 13 | EL-45040-150 | 1.5 | 450 | 40 | 3.195 |
| 14 | EL-45040-200 | 2.0 | 450 | 40 | 3.776 |
| 15 | EL-50040-150 | 1.5 | 500 | 40 | 3.345 |
| 16 | EL-50040-200 | 2.0 | 500 | 40 | 3.927 |
| 17 | EL-60040-150 | 1.5 | 600 | 40 | 3.651 |
| 18 | EL-60040-200 | 2.0 | 600 | 40 | 4.235 |
| 19 | EL-75040-150 | 1.5 | 750 | 40 | 4.114 |
| 20 | EL-75040-200 | 2.0 | 750 | 40 | 4.700 |
| 21 | EL-90040-150 | 1.5 | 900 | 40 | 4.577 |
| 22 | EL-90040-200 | 2.0 | 900 | 40 | 5.166 |
H50
H60
H75
H100
H150
*Hot Dip Galvanized (TS EN ISO 1461)
- Product weights are approximate values, may vary by ± 10%.
- Product weights on the table reflect the weights of products coated with hot dip galvanizing method.
- Standard lengths are 2500 mm and 3000 mm.
- Please contact to your customer representative for detailed information and for your demands with special dimensions.

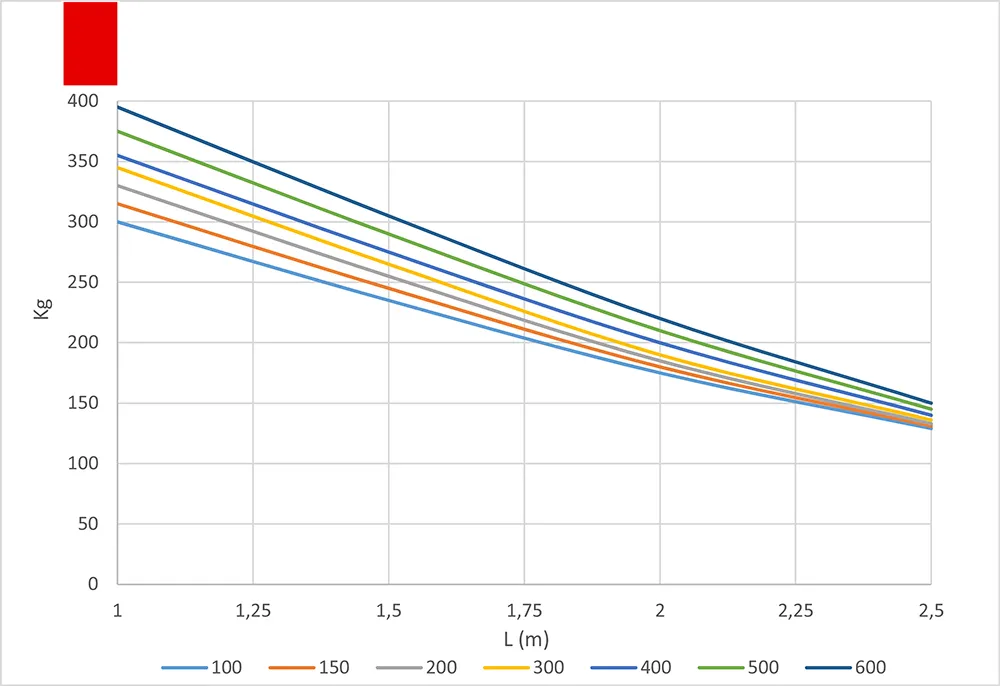

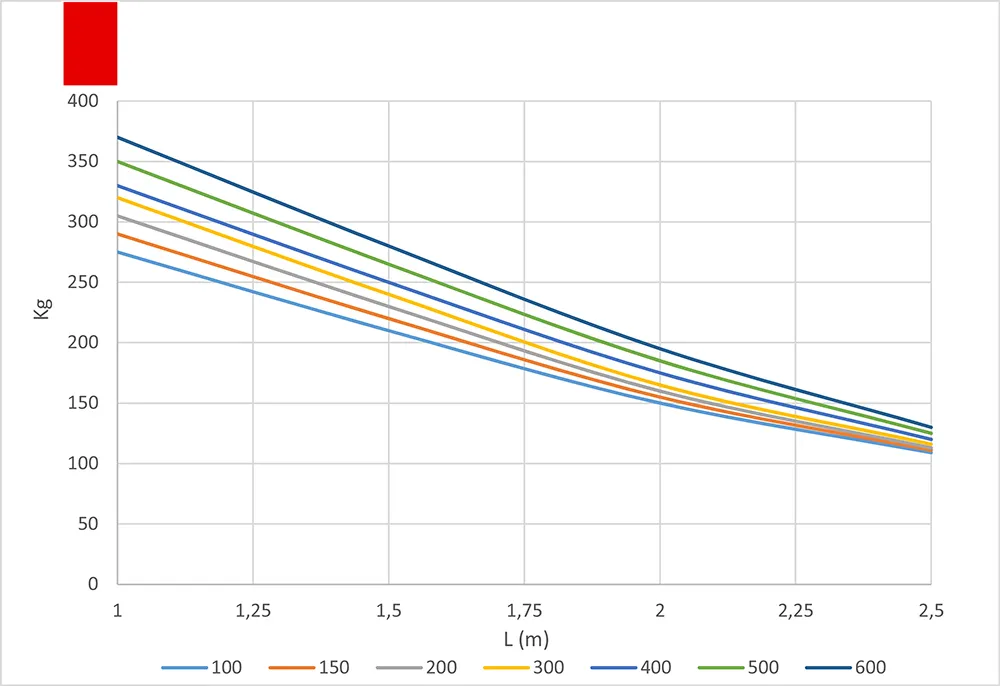

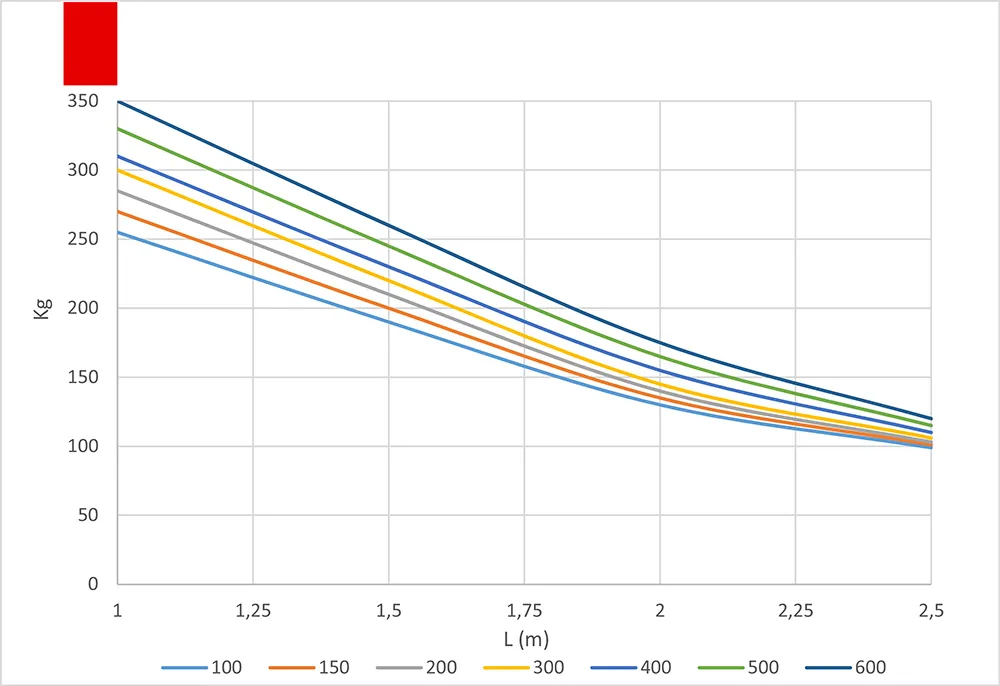

Load Diagram
EL40
EL50
EL60
EL75
EL100
EL150
